Product Description:
|
|
■Tinned,annealed,stranded or solid copper conductor.
|
|
■PP,PE or FR-PE insulation
|
|
■PUR jacketed
|
|
■Tinned or bare copper wire spiral or braid shield
|
|
■Rated temperature:80℃.Rated voltage:300Voltage
|
|
■Passes UL VW-1&CUL FT1 vertical flame test
|
|
说明：
|
|
■导体使用单股或绞线裸铜或镀锡铜。
|
|
■PP PE 或者FR-PE绝缘
|
|
■PUR被覆
|
|
■裸铜或镀锡铜丝，缠绕或编织屏蔽
|
|
■额定温度：80℃额定电压：300V
|
|
■可通过UL VW-1 及 CUL FT1 ，垂直燃烧测试
|
|
Applications:
|
|
■Internal wiring or external interconnection of electronic equipment.
|
|
应用：
|
|
■用于电子设备内部布线或外部连接。
|
|
UL Style& CUL Type
|
Cores
|
Conductor
|
Insulation
Thickness
|
Nom.Dia
|
Shield Coverage
|
Jacket Thickness
|
Overall
Diameter
|
Conductor
Resistance at 20℃
|
|
AWG
|
No/mm
|
mm
|
mm
|
%
|
mm
|
mm
|
Ω/KM
|
UL21466
CUL
（Stranded)
|
2C
|
30
|
7/0.100
|
0.23
|
0.80
|
>=65
|
0.89
|
3.80
|
381.00
|
|
28
|
7/0.127
|
0.23
|
0.90
|
>=65
|
0.89
|
4.10
|
239.00
|
|
26
|
7/0.16
|
0.23
|
1.00
|
>=65
|
0.89
|
4.30
|
150.00
|
|
24
|
11/0.16
|
0.23
|
1.10
|
>=65
|
0.89
|
4.40
|
94.20
|
|
22
|
17/0.16
|
0.23
|
1.30
|
>=65
|
0.89
|
4.80
|
59.40
|
|
20
|
21/0.178
|
0.23
|
1.50
|
>=65
|
0.89
|
5.20
|
36.70
|
|
18
|
34/0.178
|
0.23
|
1.80
|
>=65
|
0.89
|
5.80
|
23.20
|
|
16
|
26/0.25
|
0.23
|
2.00
|
>=65
|
0.89
|
8.00
|
14.60
|
|
3C
|
30
|
7/0.100
|
0.23
|
0.80
|
>=65
|
0.89
|
5.70
|
381.00
|
|
28
|
7/0.127
|
0.23
|
0.90
|
>=65
|
0.89
|
5.90
|
239.00
|
|
26
|
7/0.16
|
0.23
|
1.00
|
>=65
|
0.89
|
6.10
|
150.00
|
|
24
|
11/0.16
|
0.23
|
1.10
|
>=65
|
0.89
|
6.30
|
94.20
|
|
22
|
17/0.16
|
0.23
|
1.30
|
>=65
|
0.89
|
6.70
|
59.40
|
|
20
|
21/0.178
|
0.23
|
1.50
|
>=65
|
0.89
|
7.20
|
36.70
|
|
18
|
34/0.178
|
0.23
|
1.80
|
>=65
|
0.89
|
7.80
|
23.20
|
|
4C
|
30
|
7/0.100
|
0.23
|
0.80
|
>=65
|
0.89
|
5.90
|
381.00
|
|
28
|
7/0.127
|
0.23
|
0.90
|
>=65
|
0.89
|
6.10
|
239.00
|
|
26
|
7/0.16
|
0.23
|
1.00
|
>=65
|
0.89
|
6.40
|
150.00
|
|
24
|
11/0.16
|
0.23
|
1.10
|
>=65
|
0.89
|
6.70
|
94.20
|
|
22
|
17/0.16
|
0.23
|
1.30
|
>=65
|
0.89
|
7.10
|
59.40
|
|
20
|
21/0.178
|
0.23
|
1.50
|
>=65
|
0.89
|
7.60
|
36.70
|
|
5C
|
30
|
7/0.100
|
0.23
|
0.80
|
>=65
|
0.89
|
6.20
|
381.00
|
|
28
|
7/0.127
|
0.23
|
0.90
|
>=65
|
0.89
|
6.50
|
239.00
|
|
26
|
7/0.16
|
0.23
|
1.00
|
>=65
|
0.89
|
6.60
|
150.00
|
|
24
|
11/0.16
|
0.23
|
1.10
|
>=65
|
0.89
|
7.00
|
94.20
|
|
22
|
17/0.16
|
0.23
|
1.30
|
>=65
|
0.89
|
7.60
|
59.40
|
|
6C
|
30
|
7/0.100
|
0.23
|
0.80
|
>=65
|
0.89
|
6.60
|
381.00
|
|
28
|
7/0.127
|
0.23
|
0.90
|
>=65
|
0.89
|
6.90
|
239.00
|
|
26
|
7/0.16
|
0.23
|
1.00
|
>=65
|
0.89
|
7.20
|
150.00
|
|
24
|
11/0.16
|
0.23
|
1.10
|
>=65
|
0.89
|
7.50
|
94.20
|
|
以上数据仅供参考，不作为正式的设计依据，产品规格以双方确认的规格书承认为准！最终解释权归稳畅电子制品有限公司所有
|

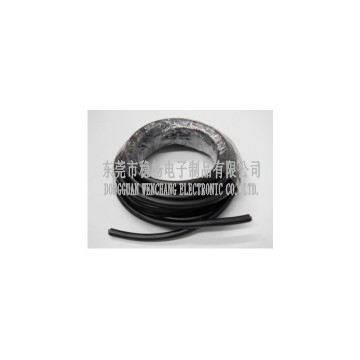

点击图片查看原图
