| Product Description: | |||||||
| ■Tinned, annealed, stranded or solid copper conductor. | |||||||
| ■XL-PE insulation. | |||||||
| ■Rated temperature: 150℃. Rated voltage: 600/750volts. | |||||||
| ■Uniform thickness of wire to ensure easy stripping and cutting. | |||||||
| ■Passes UL VW-1&CSA FT1 vertical flame test. | |||||||
| 说明： | |||||||
| ■导体使用单股或绞线裸铜或镀锡铜。 | |||||||
| ■无卤照射环保PE绝缘。 | |||||||
| ■额定温度：150℃ 额定电压：600/750Volts。 | |||||||
| ■使用标准厚度，易剥，截断容易。 | |||||||
| ■可通过ULVW-1及CUL FT1/FT2，垂直燃烧测试。 | |||||||
| Applications: | |||||||
| ■For general purpose internal wiring of electronic and electrical equipment. | |||||||
| 应用： | |||||||
| ■用于电子及电器设备内部配线。 | |||||||
|
UL Style & CSA Type |
Conductor 导体 |
Insulation Thickness 绝缘厚度 |
Overall Diameter 完成外径 |
Standard Put-up 标准长度 |
Conductor Resistance at 20℃导体电阻 |
||
| 线号 | 线数/线径 | 英制 | 公制 | ||||
| AWG | No/mm | mm | mm | Ft/coil | M/Coil | Ω/KM | |
|
UL3456 CSA （Stranded) |
30 | 7/0.102 | 0.76 | 1.85 | 2000 | 610 | 381.00 |
| 28 | 7/0.127 | 0.76 | 1.90 | 2000 | 610 | 239.00 | |
| 26 | 7/0.16 | 0.76 | 2.10 | 2000 | 610 | 150.00 | |
| 24 | 11/0.16 | 0.76 | 2.20 | 2000 | 610 | 94.20 | |
| 22 | 17/0.16 | 0.76 | 2.40 | 2000 | 610 | 59.40 | |
| 20 | 21/0.178 | 0.76 | 2.50 | 2000 | 610 | 36.70 | |
| 18 | 34/0.178 | 0.76 | 2.80 | 2000 | 610 | 23.20 | |
| 16 | 26/0.25 | 0.76 | 3.10 | 1000 | 305 | 14.60 | |
| 以上数据仅供参考，不作为正式的设计依据，产品规格以双方确认的规格书承认为准！最终解释权规稳畅电子制品有限公司所有 | |||||||

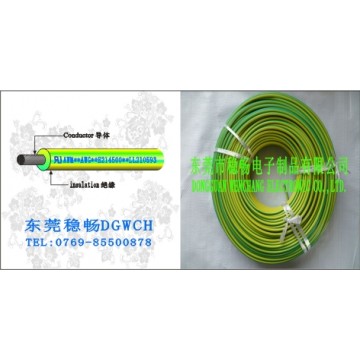

点击图片查看原图
