Product Description:
|
|
■Tinned ,annealed,stranded or solid copper conductor.
|
|
■Color -coded FR-PE insulation.
|
|
■Rated temperature:80℃.Rated voltage:300volts
|
|
■Uniform thickness of wire to ensure easy stripping and cutting.
|
|
■Passes UL VW-1&CUL FT1 vertical flamt test
|
|
■Top coated conductor is avaiable
|
|
说明：
|
|
■导体使用单股或绞线裸铜或镀锡铜
|
|
■FR-PE 绝缘
|
|
■额定温度：80℃额定电压：300Volts
|
|
■使用标准厚度，易剥，截断容易。
|
|
■可通过UL VW-1 及 CUL FT1 ，垂直燃烧测试
|
|
■可使用先绞后镀（TC）为导体
|
|
Applications:
|
|
■For general purpose internal wiring of electronic and electrical equipment.
|
|
应用：
|
|
■用于电子、电器设备内部配线
|
|
UL Style& CUL Type
|
Conductor
导体
|
Insulation
Thickness
绝缘厚度
|
Overall
Diameter
完成外径
|
Standard Put-up
标准长度
|
Conductor
Resistance at 20℃导体电阻
|
|
线号
|
线数/线径
|
英制
|
公制
|
|
AWG
|
No/mm
|
mm
|
mm
|
Ft/coil
|
M/Coil
|
Ω/KM
|
UL10602
CUL AWM I A
（Stranded)
绞线
|
30
|
7/0.100
|
0.25
|
0.80
|
2000
|
610
|
381.00
|
|
28
|
7/0.127
|
0.25
|
0.90
|
2000
|
610
|
239.00
|
|
26
|
7/0.16
|
0.25
|
1.00
|
2000
|
610
|
150.00
|
|
24
|
11/0.16
|
0.25
|
1.10
|
2000
|
610
|
94.20
|
|
22
|
17/0.16
|
0.25
|
1.30
|
2000
|
610
|
59.40
|
|
20
|
21/0.178
|
0.25
|
1.50
|
2000
|
610
|
36.70
|
|
18
|
34/0.178
|
0.25
|
1.70
|
2000
|
610
|
23.20
|
|
16
|
26/0.25
|
0.25
|
2.00
|
2000
|
610
|
14.60
|
UL10602
CUL AWM I A
（Solid)
单股
|
30
|
1/0.254
|
0.25
|
0.75
|
2000
|
610
|
361.00
|
|
28
|
1/0.32
|
0.25
|
0.80
|
2000
|
610
|
227.00
|
|
26
|
1/0.404
|
0.25
|
0.90
|
2000
|
610
|
143.00
|
|
24
|
1/0.511
|
0.25
|
1.00
|
2000
|
610
|
89.30
|
|
22
|
1/0.643
|
0.25
|
1.15
|
2000
|
610
|
56.40
|
|
20
|
1/0.813
|
0.25
|
1.30
|
2000
|
610
|
35.20
|
|
18
|
1/1.024
|
0.25
|
1.50
|
2000
|
610
|
22.20
|
|
16
|
1/1.29
|
0.25
|
1.80
|
2000
|
610
|
14.00
|
|
以上数据仅供参考，不作为正式的设计依据，产品规格以双方确认的规格书承认为准！最终解释权规稳畅电子制品有限公司所有
|

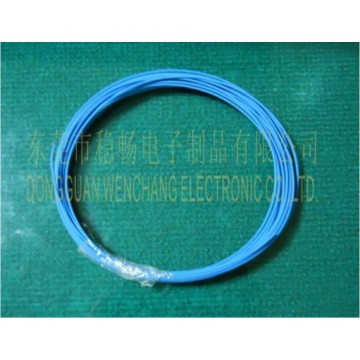

点击图片查看原图
