| Product Description: | |||||||||
| ■Tinned ,annealed,stranded or solid copper conductor. | |||||||||
| ■PP,PE insulation | |||||||||
| ■PUR jacketed | |||||||||
| ■Tinned or bare copper wire spiral or braid shield | |||||||||
| ■Rated temperature:80℃.Rated voltage:30Volts | |||||||||
| ■Passes UL VW-1&CUL FT1 vertical flamt test | |||||||||
| 说明： | |||||||||
| ■导体使用单股或绞线裸铜或镀锡铜。 | |||||||||
| ■PP,PE绝缘 | |||||||||
| ■PUR被覆 | |||||||||
| ■裸铜或镀锡铜丝，缠绕或编织屏蔽 | |||||||||
| ■额定温度：80℃额定电压：30V | |||||||||
| ■可通过UL VW-1 及 CUL FT1 ，垂直燃烧测试 | |||||||||
| Applications: | |||||||||
| ■Internal wiring or external interconnection of electronic equipment. | |||||||||
| 应用： | |||||||||
| ■用于电子设备内部布线或外部连接。 | |||||||||
| UL Style& CUL Type |
Cores 芯数 |
Conductor 导体 |
Insulation Thickness 绝缘厚度 |
Nom.Dia |
shield COVERAGE 屏蔽 覆盖率 |
Jacket Thickness 被覆厚度 |
Overall Diameter 完成外径 |
Conductor Resistance at 20℃导体电阻 |
|
| 线号 | 线数/线径 | ||||||||
| AWG | No/mm | mm | mm | % | mm | mm | Ω/KM | ||
|
UL20558 CUL （Stranded) 绞线 |
2C | 30 | 7/0.100 | 0.23 | 0.80 | >=65 | 0.38 | 3.20 | 381.00 |
| 28 | 7/0.127 | 0.23 | 0.90 | >=65 | 0.38 | 3.40 | 239.00 | ||
| 26 | 7/0.16 | 0.23 | 1.00 | >=65 | 0.38 | 3.60 | 150.00 | ||
| 24 | 11/0.16 | 0.23 | 1.10 | >=65 | 0.38 | 3.80 | 94.20 | ||
| 22 | 17/0.16 | 0.23 | 1.30 | >=65 | 0.38 | 4.20 | 59.40 | ||
| 20 | 21/0.178 | 0.23 | 1.50 | >=65 | 0.38 | 4.60 | 36.70 | ||
| 18 | 34/0.178 | 0.23 | 1.80 | >=65 | 0.38 | 5.20 | 23.20 | ||
| 16 | 26/0.25 | 0.23 | 2.10 | >=65 | 0.38 | 5.80 | 14.60 | ||
| 3C | 30 | 7/0.100 | 0.23 | 0.80 | >=65 | 0.38 | 3.40 | 381.00 | |
| 28 | 7/0.127 | 0.23 | 0.90 | >=65 | 0.38 | 3.50 | 239.00 | ||
| 26 | 7/0.16 | 0.23 | 1.00 | >=65 | 0.38 | 3.80 | 150.00 | ||
| 24 | 11/0.16 | 0.23 | 1.10 | >=65 | 0.38 | 4.00 | 94.20 | ||
| 22 | 17/0.16 | 0.23 | 1.30 | >=65 | 0.38 | 4.40 | 59.40 | ||
| 20 | 21/0.178 | 0.23 | 1.50 | >=65 | 0.38 | 4.80 | 36.70 | ||
| 18 | 34/0.178 | 0.23 | 1.80 | >=65 | 0.38 | 5.50 | 23.20 | ||
| 4C | 30 | 7/0.100 | 0.23 | 0.80 | >=65 | 0.38 | 4.80 | 381.00 | |
| 28 | 7/0.127 | 0.23 | 0.90 | >=65 | 0.38 | 5.10 | 239.00 | ||
| 26 | 7/0.16 | 0.23 | 1.00 | >=65 | 0.38 | 5.30 | 150.00 | ||
| 24 | 11/0.16 | 0.23 | 1.10 | >=65 | 0.38 | 5.50 | 94.20 | ||
| 22 | 17/0.16 | 0.23 | 1.30 | >=65 | 0.38 | 6.00 | 59.40 | ||
| 20 | 21/0.178 | 0.23 | 1.50 | >=65 | 0.38 | 6.50 | 36.70 | ||
| 5C | 30 | 7/0.100 | 0.23 | 0.80 | >=65 | 0.38 | 5.00 | 381.00 | |
| 28 | 7/0.127 | 0.23 | 0.90 | >=65 | 0.38 | 5.30 | 239.00 | ||
| 26 | 7/0.16 | 0.23 | 1.00 | >=65 | 0.38 | 5.60 | 150.00 | ||
| 24 | 11/0.16 | 0.23 | 1.10 | >=65 | 0.38 | 5.80 | 94.20 | ||
| 22 | 17/0.16 | 0.23 | 1.30 | >=65 | 0.38 | 6.40 | 59.40 | ||
| 6C | 30 | 7/0.100 | 0.23 | 0.80 | >=65 | 0.38 | 5.30 | 381.00 | |
| 28 | 7/0.127 | 0.23 | 0.90 | >=65 | 0.38 | 5.60 | 239.00 | ||
| 26 | 7/0.16 | 0.23 | 1.00 | >=65 | 0.38 | 5.90 | 150.00 | ||
| 24 | 11/0.16 | 0.23 | 1.10 | >=65 | 0.38 | 6.20 | 94.20 | ||
| 以上数据仅供参考，不作为正式的设计依据，产品规格以双方确认的规格书承认为准！最终解释权归稳畅电子制品有限公司所有 | |||||||||

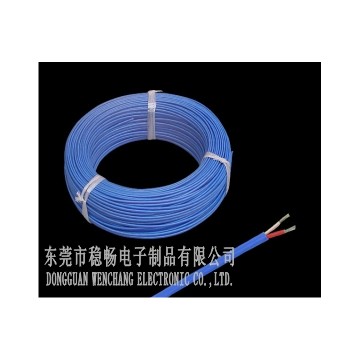

点击图片查看原图
